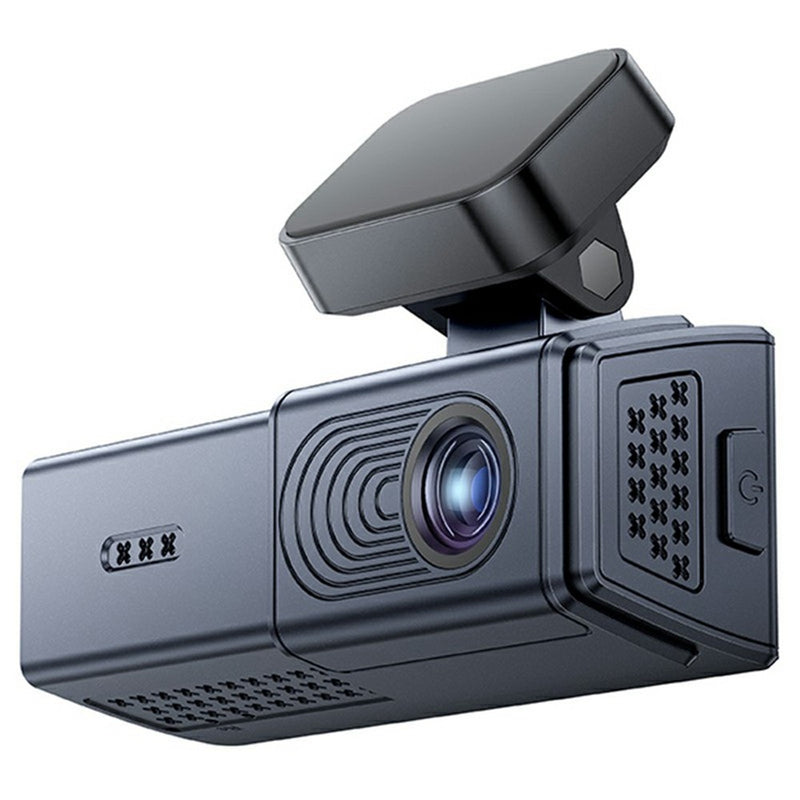

The YESIDO KM22 is a dual-channel car dash cam in ABS+PC. Chip: Hisilicon (upgraded from SA220G). Running memory: 8Mb Nor Flash. Gravity sensor: SC7A20. Screen: 1.47-inch IPS. Camera sensor: GC2083 (2G2P). Resolution: 1920×1080 at 30fps. Storage: up to 128GB Class 10 TF card (not included). Recording angle: 120° wide-angle. App: GOLOOK. G-sensor triggered emergency recording. 24/7 monitoring mode. No certifications listed. Colour: Black. Includes dash cam and English manual. Curated by Aetheo.
Why you'll like it
- Dual-channel recording — front and rear coverage simultaneously
- 1920×1080 at 30fps — 1K resolution recording via GC2083 sensor
- 120° wide-angle lens — broad field of view to reduce blind spots
- G-sensor triggered emergency recording — locks and protects footage on sudden impact
- GOLOOK app — access and review recordings from a connected device
Designed for in-vehicle recording
The KM22 records simultaneously from front and rear channels at 1920×1080 and 30fps, using the GC2083 sensor (2G2P lens configuration). The 120° wide-angle lens provides an expanded field of view across both channels. The Hisilicon chip (upgraded from SA220G) processes footage on the 8Mb Nor Flash RAM. The 1.47-inch IPS screen displays the live view and menu. The SC7A20 gravity sensor detects sudden impacts and automatically locks the corresponding footage in a protected partition, preventing overwriting. The device supports 24/7 monitoring mode for continuous recording when parked. Footage is reviewed via the GOLOOK app on a connected device. Storage is via a Class 10 TF card — up to 128GB (card not included). No certifications are listed in source documentation. Colour: Black. Curated by Aetheo.
Key features
Dual-channel 1080P recording — 120° wide angle
The KM22 captures front and rear footage simultaneously. Resolution is 1920×1080 at 30fps via the GC2083 (2G2P) image sensor. The 120° wide-angle lens covers a broad arc in both the forward and rear directions, reducing the blind spots typical of narrower-angle cameras. The 1.47-inch IPS screen allows live preview and menu navigation directly on the unit. Rear camera sensor specifications (separate from the primary GC2083) are not individually listed in source documentation.
G-sensor triggered emergency recording
The SC7A20 gravity sensor monitors the vehicle for sudden changes in force — impacts, hard braking or collisions. When the sensor detects an event above a set threshold, the corresponding footage is automatically locked and saved to a protected partition on the TF card, preventing it from being overwritten by the loop-recording cycle. Emergency-locked clips are accessible and reviewable via the GOLOOK app. Sensitivity threshold for the G-sensor is not specified in source documentation.
24/7 monitoring — GOLOOK app
The KM22 supports 24/7 monitoring mode for continuous recording when the vehicle is stationary and parked. Monitoring mode requires a permanent power connection to the vehicle (hardwire kit not specified in source — not listed in package). The GOLOOK app allows footage to be accessed and reviewed on a connected smartphone — verify current app availability for your device's operating system and OS version before purchase. Loop recording writes footage continuously, overwriting the oldest files when storage is full, except for G-sensor-locked clips.
Up to 128GB Class 10 TF card storage
The KM22 supports TF (microSD) cards up to 128GB, Class 10 rating — a Class 10 card is required for reliable 1080P recording. The card is not included. Recording is continuous loop — oldest footage is overwritten automatically when the card is full, except for emergency-locked clips. Formatting a new card in the device before first use is recommended. Recording hours at 1080P/30fps will vary by card capacity and compression settings.
Best for
- Dual-channel coverage — front and rear recording simultaneously at 1080P
- 120° wide-angle — broad road coverage on both channels
- G-sensor protection — automatic emergency clip locking on impact
- 24/7 monitoring mode — continuous recording while parked
- GOLOOK app access — remote footage review on a connected device
What's included
- 1 × YESIDO KM22 Dual Channel Dash Cam
- 1 × English User Manual
Compatibility and setup
Material: ABS + PC. Chip: Hisilicon (upgraded from SA220G). RAM: 8Mb Nor Flash. Gravity sensor: SC7A20. Screen: 1.47-inch IPS. Sensor: GC2083 (2G2P). Resolution: 1920×1080 / 30fps. Storage: up to 128GB Class 10 TF card (not included). Recording angle: 120° wide-angle. Channels: dual (front + rear). App: GOLOOK. 24/7 monitoring: yes. Emergency recording: G-sensor triggered. Certifications: not listed. Colour: Black. Included: dash cam
Frequently asked questions
Does it record in 4K?
No, the KM22 records at 1080p (1K) resolution via the GC2083 sensor at 30fps.
How much footage can it store?
Supports microSD cards up to 128GB Class 10 (not included). Footage loops when full unless protected by the G-sensor.
What happens during an accident?
The SC7A20 gravity sensor detects sudden impact and automatically locks the corresponding footage to a protected partition to prevent overwriting.
Can I view recordings on my phone?
Yes, the GOLOOK app lets you access and review recorded footage from a connected mobile device.
| Specification | Details |
|---|---|
| Brand | YESIDO |
| Model | KM22 |
| Material | ABS + PC |
| Chip | Hisilicon (upgraded from SA220G) |
| Running Memory | 8Mb Nor Flash |
| Gravity Sensor | SC7A20 |
| Screen | 1.47-inch IPS |
| Camera Sensor | GC2083 (2G2P) |
| Resolution | 1920×1080 / 30fps |
| Recording Angle | 120° wide-angle |
| Channels | Dual (front + rear) |
| Storage | Up to 128GB Class 10 TF card (not included) |
| App | GOLOOK |
| 24/7 Monitoring | Yes |
| Emergency Recording | G-sensor triggered (SC7A20) |
| Certifications | Not listed |
| Colour | Black |
| Included | Dash cam, English manual (TF card not included) |
