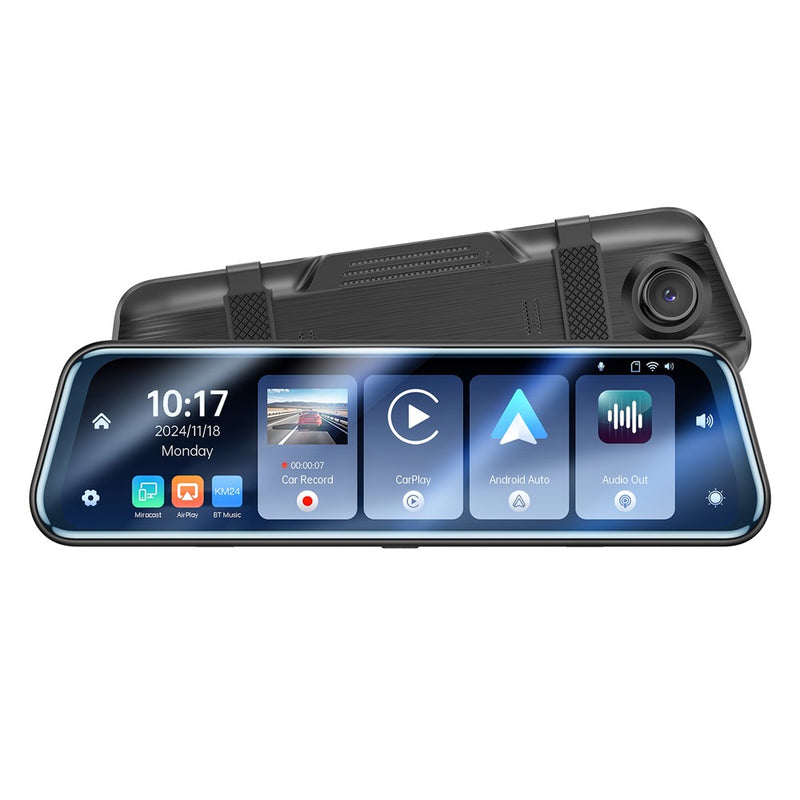

The YESIDO KM24 is a streaming rearview mirror with CarPlay, Android Auto and AirPlay integration, a 480×1920 touchscreen with 2.5D tempered glass and GT911 touch IC, an Allwinner V553 CPU, 2GB DDR3 RAM, 512Mbit NAND Flash, a 4K front camera (P2 sensor, 3840×2160P/30fps), a 1080P rear camera (GC2083 sensor, 1920×1080P/30fps), Bluetooth 5.2, WiFi, FM radio and AUX input. Maximum storage: 256GB (Class 10 TF card recommended; 32GB card included). Speaker: 8Ω 1.5W. Power: dedicated USB-C interface. Supports 15 languages. Certified CE and CE-RoHS. Colour: Black. Includes English manual, AUX cable, rear camera, car charger with cable and 32GB memory card. Curated by Aetheo for in-car connectivity and recording.
Why you'll like it
- CarPlay, Android Auto and AirPlay — three wireless connectivity platforms in one unit
- 4K front camera (3840×2160P/30fps) — high-resolution dash cam recording
- 480×1920 touchscreen with 2.5D tempered glass and GT911 touch IC
- 256GB expandable storage — loop recording via TF card (32GB included)
- WiFi + Bluetooth 5.2 + FM + AUX — multiple audio and connectivity inputs
Designed for in-car connectivity and recording
The KM24 replaces the standard rearview mirror with a streaming mirror that provides CarPlay, Android Auto or AirPlay for navigation and media, plus an integrated dual-camera dash cam for front and rear recording. The Allwinner V553 CPU with 2GB DDR3 RAM drives the 480×1920 display and manages wireless connectivity. The 4K front camera records at 3840×2160P/30fps via the P2 sensor; the rear GC2083 sensor records at 1920×1080P/30fps. A three-axis G-sensor detects motion and triggers emergency recording. 15 languages are supported. Power is via a dedicated USB-C interface. A 32GB memory card is included; up to 256GB is supported with a Class 10 card. Curated by Aetheo for connected in-car use.
Key features
CarPlay, Android Auto, AirPlay
The KM24 supports wireless CarPlay, Android Auto and AirPlay — enabling navigation, media playback and phone mirroring from a paired iPhone or Android device via the 480×1920 touchscreen. Specific CarPlay/Android Auto version compatibility depends on the connected phone's operating system version. USB-C power is required for operation.
480×1920 touchscreen — 2.5D tempered glass, GT911 IC
The display outputs 480 pixels horizontally by 1920 pixels vertically, driven by the ICN7707 display IC. The 2.5D tempered glass panel and GT911 touch IC provide responsive touch input. The portrait aspect ratio fills the rearview mirror housing without a visible bezel on the mirrored surface.
4K front camera — P2 sensor, 3840×2160P/30fps
The front-facing dash cam uses a P2 image sensor to record at 3840×2160 pixels at 30 frames per second. This 4K recording resolution captures number plates and road detail at higher fidelity than 1080P dash cams. A three-axis G-sensor triggers emergency clip locking when a sudden impact is detected.
1080P rear camera — GC2083 sensor, 1920×1080P/30fps
The included rear camera uses the GC2083 sensor and records at 1920×1080P/30fps. The rear camera connects to the KM24 unit via cable and displays a live rear view on the mirror screen. Mounting and cable routing are required during installation.
Bluetooth 5.2 + WiFi + FM + AUX
Connectivity includes Bluetooth 5.2 for phone pairing, WiFi for CarPlay/Android Auto, FM radio output, and a wired AUX input. An AUX audio cable is included in the box. Audio output is via the on-board 8Ω 1.5W speaker.
Allwinner V553, 2GB DDR3, 512Mbit NAND + 256GB expandable
The Allwinner V553 CPU drives the mirror's operating system and camera processing. 2GB DDR3 RAM and 512Mbit NAND Flash provide system memory and firmware storage. Up to 256GB of video storage is supported via a Class 10 TF card (recommended). Loop recording automatically overwrites oldest footage when the card is full. A 32GB TF card is included.
Best for
- Drivers who want CarPlay or Android Auto on a dash-mounted mirror screen
- Those who want 4K front dash cam recording alongside wireless phone connectivity
- Users who want a single unit combining streaming mirror and dual-camera dash cam
- Vehicles without a built-in infotainment display needing CarPlay/AirPlay access
- Those who want FM, Bluetooth 5.2 and AUX for flexible audio input
What's included
- 1 × YESIDO KM24 CarPlay Rearview Mirror
- 1 × Rear View Camera
- 1 × Car Charger with Cable
- 1 × 32GB Memory Card
- 1 × AUX Audio Cable
- 1 × English Manual
Compatibility and setup
CPU: Allwinner V553. RAM: 2GB DDR3. Flash: 512Mbit NAND. Display: ICN7707 IC, 480×1920 resolution. Touch: 2.5D tempered glass, GT911 IC. Front camera: P2 senso
| Specification | Details |
|---|---|
| Brand | YESIDO |
| Model | KM24 |
| CPU | Allwinner V553 |
| RAM | 2GB DDR3 |
| Flash | 512Mbit NAND (+ TF card up to 256GB) |
| Display | ICN7707 IC, 480×1920 resolution |
| Touch Panel | 2.5D tempered glass, GT911 IC |
| Front Camera | P2 sensor, 3840×2160P/30fps (4K) |
| Rear Camera | GC2083 sensor, 1920×1080P/30fps |
| Speaker | 8Ω 1.5W |
| Power Input | Dedicated USB-C |
| Bluetooth | 5.2 |
| WiFi | Yes |
| FM | Yes |
| AUX | Yes |
| G-Sensor | Three-axis |
| Languages | 15 (incl. English, French, German, Arabic) |
| Storage | Up to 256GB TF (Class 10 recommended; 32GB included) |
| Certifications | CE, CE-RoHS |
| Colour | Black |
| Included | Mirror, rear camera, car charger with cable, 32GB card, AUX cable, English manual |
